► Product features
1. Compatible with Rockchip RK3588S Series application processor, suitable for different application scenarios;
2. Hardware performance can be selected according to application requirements to optimize cost and improve market competitiveness;
3. Plug and play, reduce R & D costs and risks, accelerate product launch time;
4. CM3588S-H series modules compatible with pins to pins, giving maximum flexibility;
5. 10 to 15 years of product life cycle, long-term stable supply, greatly reduce project maintenance costs;
6. Original compliance supply channels, in line with RoHS and other international quality management system requirements;
7. Provide rich application reference cases and carrier board design services;
► Product application
Rockchip RK3588S series 8nm process and multi-core architecture of embedded processor is an ideal choice for many applications, including IOT gateway, digital signage, power monitoring, medical equipment, navigator, intelligent security, charging pile, smart home, industrial automatic control equipment, smart city, smart road pole, human-computer interaction equipment, logistics express cabinet, garbage sorting cabinet, environmental monitoring, avionics equipment, Edge computing, instrumentation, entertainment system, POS machine, network storage, data acquisition instrument, public security, thin client device, robot, industrial routing, game console and other application fields.
GOEMBED CM3588S-H embedded computing module (also known as ARM core board) is an industrial quality product based on Rockchip RK3588S series processor, which is elaborately designed by the R & D team with 10+ years of product design and development experience, according to the core resources and application characteristics of Rockchip RK3588S series CPU, and has passed strict production test. According to the requirements of specific occasions in the application environment, users can choose the appropriate embedded ARM core module to build the software and hardware system platform conveniently and quickly, reduce the difficulty of development, shorten the product development cycle, and reduce the investment of R & D cost, so as to help customers realize the final application requirements simply and quickly.
► Easy maintenance & upgrade
GOEMBED CM3588S-H series computing modules are pin to pin compatible with Rockchip RK3588S series products. The CM3588S-H computing module encapsulates the RK3588/RK3588S processor and other modern electronic designs, such as high-density and high-speed impedance control wiring using blind buried hole technology. Compared with the computing module, the design, production and maintenance of the carrier board are usually easier. The same carrier board can be compatible with computing modules with different performance, which can quickly meet to market demand.
At the same time, GOEMBED CM3588S-H core module provides a wealth of interfaces, from simple GPIO, industrial I2C, SPI, CAN and UART bus, to high-speed USB2.0 interface, as well as applications such as PCIe, SATA, MIPI, HDMI, Gigabit Ethernet become very easy.

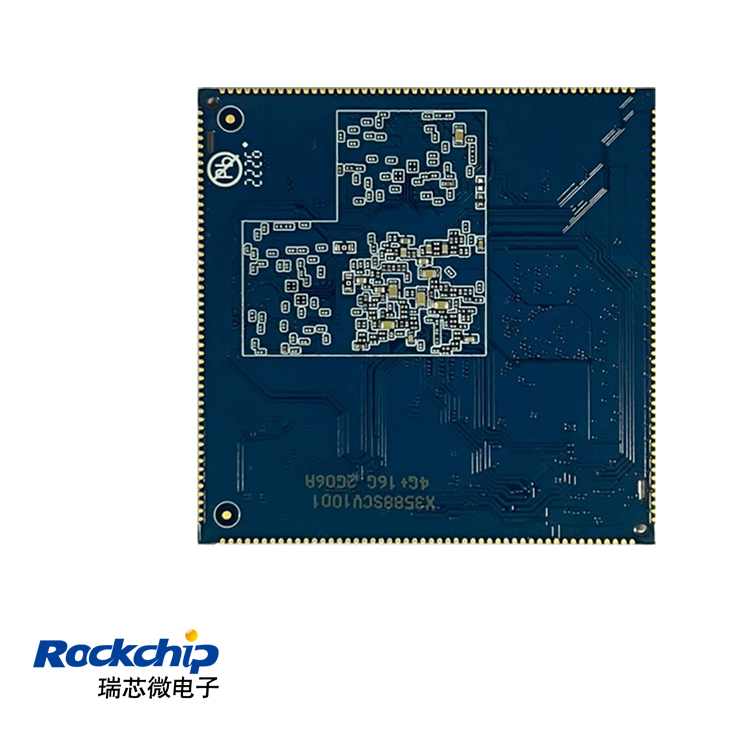

RK3588S H-Series Computing Module
Description of part code:
If you need to know more and < CUSTOM DESIGN >, please contact us.
H Series RK3588S RK3588S RK3588S RK3588S Part number CM3588S CH4 CM3588S CH8 CM3588S DH4 CM3588S DH8 Order Code - - - - CPU Name Rockchip RK3588S Rockchip RK3588S Rockchip RK3588S Rockchip RK3588S CPU Type ARM Cortex™-A76 + Cortex™-A55 ARM Cortex™-A76 + Cortex™-A55 CPU Cores 4x + 4x 4x + 4x 4x + 4x 4x + 4x CPU Clock 2.4GHz 2.4GHz 2.4GHz 2.4GHz DDR RAM 4GB 8GB 4GB 8GB Storange 16GB eMMC 16GB eMMC 16GB eMMC 16GB eMMC SPI Flash - - - - EEPROM - - - - PMU Connectivity 10x UART, 4x USB, 2x ADC, PWM, ISP, SATA, PCIe, eDP, DP, HDMI2.1, MIPI , RGB, Ethernet, GPIOs 10x UART, 4x USB, 2x ADC, PWM, ISP, SATA, PCIe, eDP, DP, HDMI2.1, MIPI , RGB, Ethernet, GPIOs Size(L*W) 55 x 55 mm 55 x 55 mm Temperature 0° to 70° C 0° to 70° C -40° to 85° C -40° to 85° C Module Interface 200pins Stamp hole 200pins Stamp hole Carrier board number - - MOQ MOQ=100 MOQ=100 MOQ=100 MOQ=100 ====== ABOUT GOEMBED ======
