► Product features
1. Compatible with Allwinner T507-H Series application processor, suitable for different application scenarios;
2. Hardware performance can be selected according to application requirements to optimize cost and improve market competitiveness;
3. Plug and play, reduce R & D costs and risks, accelerate product launch time;
4. CMT507-H series modules compatible with pins to pins, giving maximum flexibility;
5. 10 to 15 years of product life cycle, long-term stable supply, greatly reduce project maintenance costs;
6. Original compliance supply channels, in line with RoHS and other international quality management system requirements;
7. Provide rich application reference cases and carrier board design services;
► Product application
Allwinner T507-H series ARM cortex A53 Quad core and multi-core architecture of embedded processor is an ideal choice for many applications, including IOT gateway, digital signage, power monitoring, medical equipment, navigator, intelligent security, charging pile, smart home, industrial automatic control equipment, smart city, smart road pole, human-computer interaction equipment, logistics express cabinet, garbage sorting cabinet, environmental monitoring, avionics equipment, Edge computing, instrumentation, entertainment system, POS machine, network storage, data acquisition instrument, public security, thin client device, robot, industrial routing, game console and other application fields.
GOEMBED CMT507-H embedded computing module (also known as ARM core board) is an industrial quality product based on NXP i.MX6 series processor, which is elaborately designed by the R & D team with 10+ years of product design and development experience, according to the core resources and application characteristics of Allwinner T507-H series CPU, and has passed strict production test. According to the requirements of specific occasions in the application environment, users can choose the appropriate embedded ARM core module to build the software and hardware system platform conveniently and quickly, reduce the difficulty of development, shorten the product development cycle, and reduce the investment of R & D cost, so as to help customers realize the final application requirements simply and quickly.
► Easy maintenance & upgrade

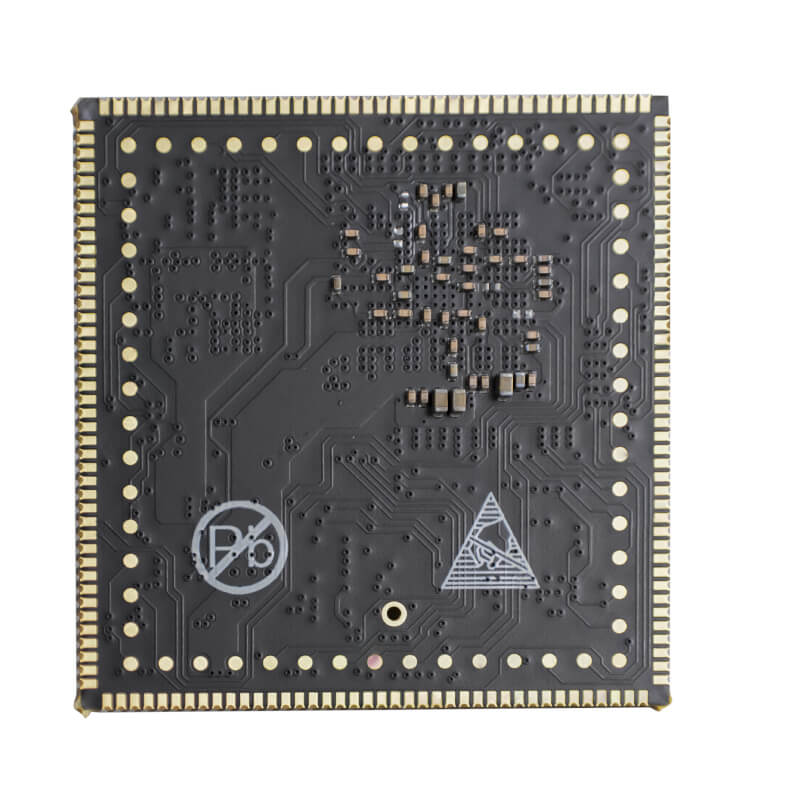

GOEMBED CMT507-H series computing modules are pin to pin compatible with Allwinner T507-H series products. The CMT507-H computing module encapsulates the T507/T517 processor and other modern electronic designs, such as high-density and high-speed impedance control wiring using blind buried hole technology. Compared with the computing module, the design, production and maintenance of the carrier board are usually easier. The same carrier board can be compatible with computing modules with different performance, which can quickly meet to market demand.
At the same time, GOEMBED CMT507-H core module provides a wealth of interfaces, from simple GPIO, industrial I2C, SPI, CAN and UART bus, to high-speed USB2.0 interface, as well as applications such as PCIe, SATA, MiPi, HDMI, Gigabit Ethernet become very easy.
T507 H-Series Computing Module
Description of part code:
If you need to know more and < CUSTOM DESIGN >, please contact us.
H Series T507-H T507-H T507-H T507-H Part number CMT507 CH1 CMT507 CH2 CMT507 DH1 CMT507 DH2 Order Code - - - - CPU Name Allwinner T507-H Allwinner T507-H Allwinner T507-H Allwinner T507-H CPU Type ARM Cortex™-A53 ARM Cortex™-A53 CPU Cores 4x 4x 4x 4x CPU Clock 1.5GHz 1.5GHz 1.5GHz 1.5GHz DDR RAM 1GB 2GB 1GB 2GB Storange 8GB eMMC 8GB eMMC 8GB eMMC 8GB eMMC SPI Flash - - - - EEPROM - - - - Ethernet PHY AXP853T AXP853T Connectivity 4x UART, 4x USB, 4x ADC, PWM,IIS, SPI, IIC, LVDS, HDMI, CSI, SD, Ethernet, GPIOs 4x UART, 4x USB, 4x ADC, PWM,IIS, SPI, IIC, LVDS, HDMI, CSI, SD, Ethernet, GPIOs Size(L*W) 43 x 45 mm 43 x 45 mm Temperature 0° to 70° C 0° to 70° C -40° to 85° C -40° to 85° C Module Interface 164pins Stamp hole + 58Pins LGA 164pins Stamp hole + 58Pins LGA Carrier board number - - MOQ MOQ=100 MOQ=100 MOQ=100 MOQ=100
