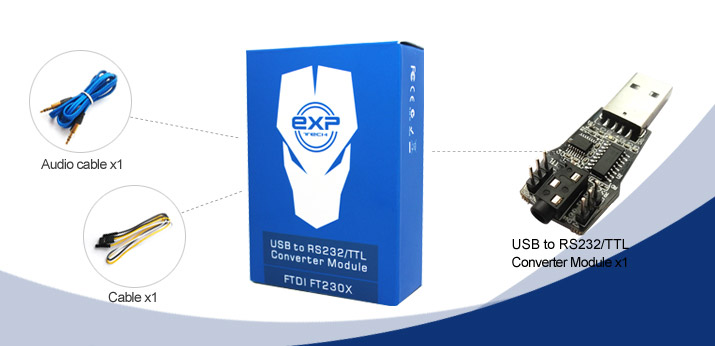

Product Configure: USB to RS232/TTL

Product Number: COM10U

What is USB to RS232/TTL Converter?

The USB to RS232/TTL Converter module provides a simple method of adapting legacy serial units with RS232 interfaces, to modern USB ports. This is accomplished by using the industry standard FTDI FT230X USB-Serial bridge IC.

Key Features:

    • Support RS232/TTL output and input

    • Add one RS-232 serial port (3.5mm Jack) for Intel Galileo.

    • Operates with, and powered by, USB 1.1 or USB 2.0 host or hub.

    • FIFO: 512 byte transmit buffer, 512 byte receive buffer.

    • 12Mbps USB Full Speed interface and up to 1Mbps on the RS232 interface.

    • LED indicate status & easy diagnostics.

    • Data transfer rates from 300 baud to 3 Mbaud.

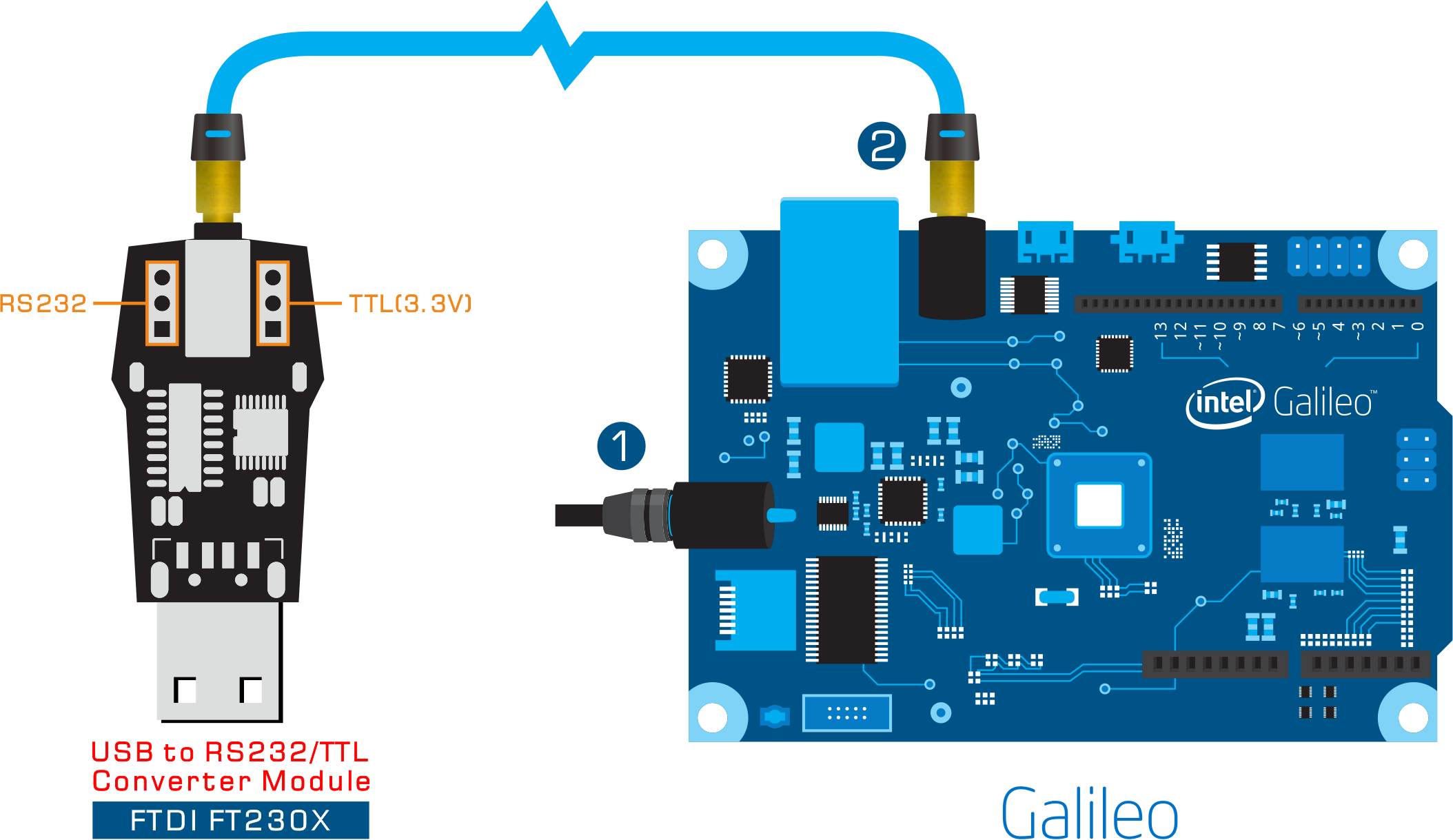

How to connect Galileo?

You need one USB to RS232/TTL Converter!

Support Carrier Boards: B1, B2, B3, B4, B6H & B7. More Carrier Boards, Please contact us.
