► Product introduction

Single board computer(SBC) is composed of carrier board and computing module. the carrier board is used to connect peripheral module and computing module. The carrier board integrates application related connectors and multimedia interfaces, such as USB, Ethernet, Audio, UART, CAN, HDMI, LCD, Touch, 4G, WiFi, Bluetooth, RFID, Camera, Speaker, etc. The carrier board is connected with the computing module through standard interface such as SODIMM, which provides a complete application platform.

Along with the SBC, we provides development materials including user manual, PDF schematic diagram, external expansion interface driver, BSP source code package, development tools, etc., which provides a perfect software and hardware development environment for application development. Starting from the SBC to realize the specific application requirements can not only reduce the product development cycle, realize the rapid launch of products, but also provide better scalability and flexibility for more project products by replacing the computing module.

► Product features

1. Compatible with NXP I.MX 6 Series application processor, suitable for different application scenarios;

2. Hardware performance can be selected according to application requirements to optimize cost and improve market competitiveness;

3. Plug and play, reduce R & D costs and risks, accelerate product launch time;

4. CM6-X series modules compatible with pins to pins, giving maximum flexibility;

5. 10 to 15 years of product life cycle, long-term stable supply, greatly reduce project maintenance costs;

6. Original compliance supply channels, in line with RoHS and other international quality management system requirements;

7. Provide rich application reference cases and carrier  board design services;

► Product application

NXP i. MX6 series ARM cortex A9 single core and multi-core architecture of embedded processor is an ideal choice for many applications, including IOT gateway, digital signage, power monitoring, medical equipment, navigator, intelligent security, charging pile, smart home, industrial automatic control equipment, smart city, smart road pole, human-computer interaction equipment, logistics express cabinet, garbage sorting cabinet, environmental monitoring, avionics equipment, Edge computing, instrumentation, entertainment system, POS machine, network storage, data acquisition instrument, public security, thin client device, robot, industrial routing, game console and other application fields.

GOEMBED CM6X embedded computing module (also known as ARM core board) is an industrial quality product based on NXP i.MX6 series processor, which is elaborately designed by the R & D team with 10+ years of product design and development experience, according to the core resources and application characteristics of NXP i.MX6 series CPU, and has passed strict production test. According to the requirements of specific occasions in the application environment, users can choose the appropriate embedded ARM core module to build the software and hardware system platform conveniently and quickly, reduce the difficulty of development, shorten the product development cycle, and reduce the investment of R & D cost, so as to help customers realize the final application requirements simply and quickly.

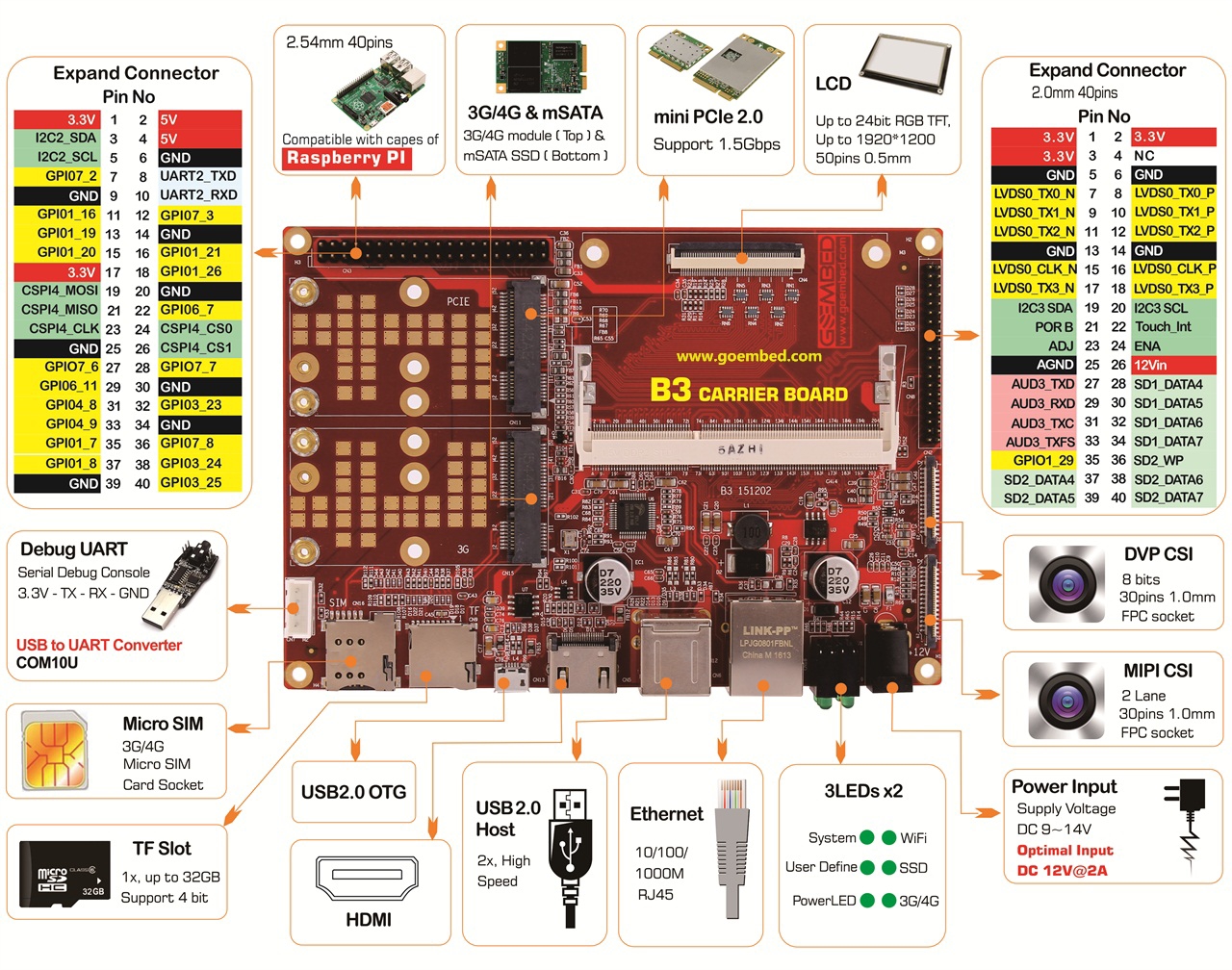

SBC6x B3 Series Single Board Computer

Description of part code:

If you need to know more and < CUSTOM DESIGN >, please contact us.

► Packing List

    1) B3 Carrier  board      x1

    2) CM6X core module   x1
