Note: Exwork price, excluding tax and shipment.
Dear friends,
thank you for your trust and support ~
Because of the recent fluctuations on material prices and delivery dates. please contact us (email: sales@goembed.com) for the latest prices and delivery dates, thank you for your understand and support.
-
► Product introduction
Single board computer(SBC) is composed of carrier board and computing module. the carrier board is used to connect peripheral module and computing module. The carrier board integrates application related connectors and multimedia interfaces, such as USB, Ethernet, Audio, UART, CAN, HDMI, LCD, Touch, 4G, WiFi, Bluetooth, RFID, Camera, Speaker, etc. The carrier board is connected with the computing module through standard interface such as SODIMM, which provides a complete application platform.
Along with the SBC, we provides development materials including user manual, PDF schematic diagram, external expansion interface driver, BSP source code package, development tools, etc., which provides a perfect software and hardware development environment for application development. Starting from the SBC to realize the specific application requirements can not only reduce the product development cycle, realize the rapid launch of products, but also provide better scalability and flexibility for more project products by replacing the computing module.
► Product features
1. Compatible with Rockchip RK3588 Series application processor, suitable for different application scenarios;
2. Hardware performance can be selected according to application requirements to optimize cost and improve market competitiveness;
3. Plug and play, reduce R & D costs and risks, accelerate product launch time;
4. SBC3588 series computer board compatible with pins to pins, giving maximum flexibility;
5. 10 to 15 years of product life cycle, long-term stable supply, greatly reduce project maintenance costs;
6. Original compliance supply channels, in line with RoHS and other international quality management system requirements;
7. Provide rich application reference cases and carrier board design services;
► Product application
Rockchip RK3588 series ARM cortex A76 Quad + A55 Quad core and multi-core architecture of embedded processor is an ideal choice for many applications, including IOT gateway, digital signage, power monitoring, medical equipment, navigator, intelligent security, charging pile, smart home, industrial automatic control equipment, smart city, smart road pole, human-computer interaction equipment, logistics express cabinet, garbage sorting cabinet, environmental monitoring, avionics equipment, Edge computing, instrumentation, entertainment system, POS machine, network storage, data acquisition instrument, public security, thin client device, robot, industrial routing, game console and other application fields.
GOEMBED SBC3588 embedded computing module (also known as ARM core board) is an industrial quality product based on Rockchip RK3588 series processor, which is elaborately designed by the R & D team with 10+ years of product design and development experience, according to the core resources and application characteristics of Rockchip RK3588 series CPU, and has passed strict production test. According to the requirements of specific occasions in the application environment, users can choose the appropriate embedded ARM core module to build the software and hardware system platform conveniently and quickly, reduce the difficulty of development, shorten the product development cycle, and reduce the investment of R & D cost, so as to help customers realize the final application requirements simply and quickly.

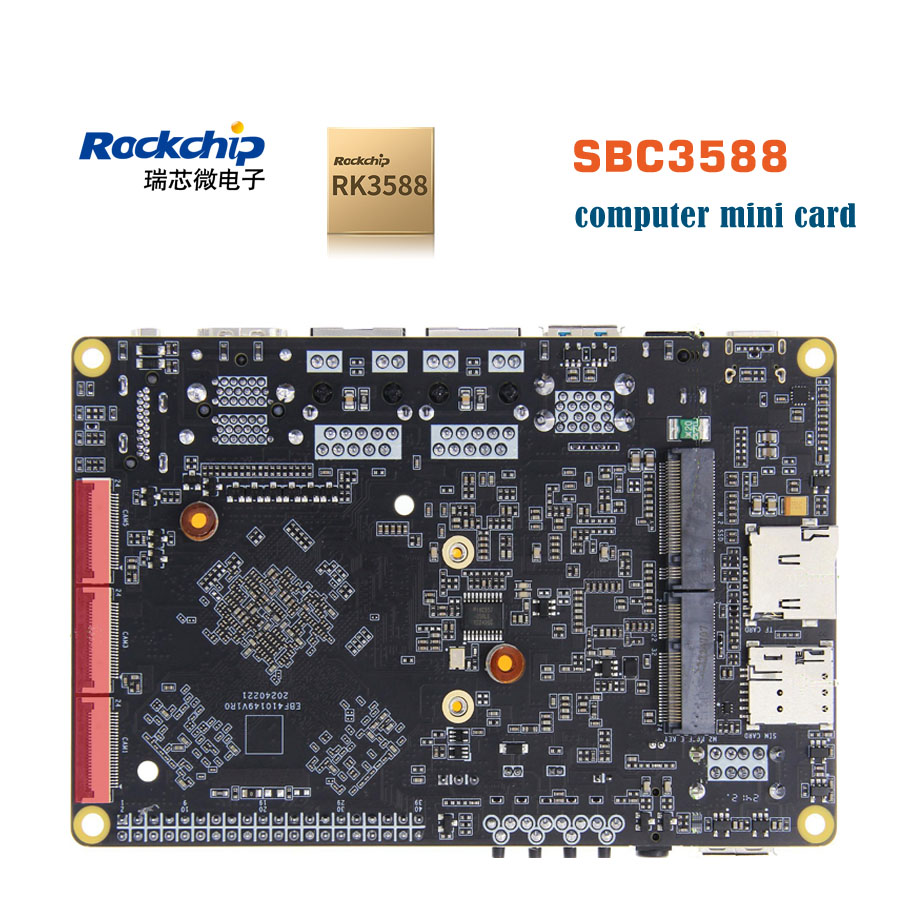

SBC3588 Series Single Board Computer
Description of part code:
If you need to know more and < CUSTOM DESIGN >, please contact us.
4GB DDR4 + 0GB eMMC 8GB DDR4 + 0GB eMMC 16GB DDR4 + 128GB eMMC PN: SBC3588 WA4
PN: SBC3588 WA8 PN: SBC3588 WA16 Rockchip RK3588 2.4GHz
Quad Cortex-A76 +Quad Cortex-A55
ARM Mali-G610 MC4 GPU
6.0 TOPs NPU
8nm process, 64bit
Rockchip RK3588 2.4GHz
Quad Cortex-A76 +Quad Cortex-A55
ARM Mali-G610 MC4 GPU
6.0 TOPs NPU
8nm process, 64bit
Rockchip RK3588 2.4GHz
Quad Cortex-A76 +Quad Cortex-A55
ARM Mali-G610 MC4 GPU
6.0 TOPs NPU
8nm process, 64bit
Optimal Voltage: DC 12V, 2A
Size ( L * W ): 125*80 mm
Working Temperature: 0° to 70° C
Working Humidity: 10 to 80 %RH
Optimal Voltage: DC 12V, 2A
Size ( L * W ): 125*80 mm
Working Temperature: 0° to 70° C
Working Humidity: 10 to 80 %RH
Optimal Voltage: DC 12V, 2A
Size ( L * W ): 125*80 mm
Working Temperature: 0° to 70° C
Working Humidity: 10 to 80 %RH
Support software:
Linux 5.10
Debian 10
Android 11
Ubuntu 22
Support software:
Linux 5.10
Debian 10
Android 11
Ubuntu 22
Support software:
Linux 5.10
Debian 10
Android 11
Ubuntu 22
Support Interface:
SATA (N)
M.2 (2)
mPCIe (Y)
TYPE-C USB OTG/DP
USB2.0 2x Ext
USB2.0 1x Int 1with 3G/4G/5G
USB3.0 2x
Ethernet 10/100/1000 (2)
Carema interface DVP (N)
MIPI CSI (6)
MIPI DSI (2)
HDMI out (2)
HDMI in (1)
TFT RGB LCD interface (N)
eDP (Y)
TF slot (Y)
SIM slot (Y)
Audio (Y)
Debug UART,I2C,SPI,GPIOs
Support Interface:
SATA (N)
M.2 (2)
mPCIe (Y)
TYPE-C USB OTG/DP
USB2.0 2x Ext
USB2.0 1x Int 1with 3G/4G/5G
USB3.0 2x
Ethernet 10/100/1000 (2)
Carema interface DVP (N)
MIPI CSI (6)
MIPI DSI (2)
HDMI out (2)
HDMI in (1)
TFT RGB LCD interface (N)
eDP (Y)
TF slot (Y)
SIM slot (Y)
Audio (Y)
Debug UART,I2C,SPI,GPIOs
Support Interface:
SATA (N)
M.2 (2)
mPCIe (Y)
TYPE-C USB OTG/DP
USB2.0 2x Ext
USB2.0 1x Int 1with 3G/4G/5G
USB3.0 2x
Ethernet 10/100/1000 (2)
Carema interface DVP (N)
MIPI CSI (6)
MIPI DSI (2)
HDMI out (2)
HDMI in (1)
TFT RGB LCD interface (N)
eDP (Y)
TF slot (Y)
SIM slot (Y)
Audio (Y)
Debug UART,I2C,SPI,GPIOs
====== ABOUT GOEMBED ======
GOEMBED team with experienced embedded engineers who have been engaged in ARM hardware and software design for years.
Our products include single board computers (SBC6x series) and CPU core modules (CM6x series) based on Freescale i.MX 6 ARM Cortex-A9 processors. Supported by Linux / Android. We can redesign carrier boards and SBC as your idea quickly.
GOEMBED focus on Embedded Board Solutions, providea complete new board for your specified requirement or even a turnkey solution to accelerate your new products to market.
We are your trust worthy partner on ARM embedded design services and solutions.
More Carrier Boards
Customized based on your needs!
ODM / OEM Services
Bring your new products to market quickly
-
-
Allwinner T507 DH1 computing module
The T507-H is a power efficient and cost-optimized applications processor family featuring an advanced implementation of Quad Arm Cortex-A53 core, which operates at speeds up to 1.5GHz. Support USB, uSD, RGMII, RMII, HDMI, LVDS, CVBS, MIPI-CSI high-speed interfaces.$ 49.00立即购买
-
Rockchip RK3568 DS2 computing module
CM3568 DS2 - an industrial quality product based on Rockchip RK3568 series processor. Support 1T NPU. Support 4K 60fps H.265/H.264/VP9 decoder. Support 1080P 60fps H.265/H.264 encoder. Support eDp/HDMI2.0/MIPI/LVDS/24bit RGB/EBC and multi-display.$ 79.00立即购买
-
Rockchip RK3568 CS2 computing module
CM3568 CS2 - an commercial quality product based on Rockchip RK3568 series processor. Support 1T NPU. Support 4K 60fps H.265/H.264/VP9 decoder. Support 1080P 60fps H.265/H.264 encoder. Support eDp/HDMI2.0/MIPI/LVDS/24bit RGB/EBC and multi-display.$ 56.00立即购买
-
RK3588S Computing Board SBC3588S
Rockchip RK3588S 2.4GHz 8nm, Quad A76 + Quad A55 Mali-G610 6TOPs NPU, devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution.$ 259.00立即购买
-
RK3568 SBC3568DS2-B8
Rockchip RK3568 devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution.$ 149.00立即购买
-
7inch TFT LCD (with CTP Shell)
This is a reliable, stable display module. The LCD70C1ACW CAPE which features a 7.0 inch TFT LCD 1024x600 resolution display with capacitive touch,is a cape specifically designed for Single Board Computer(SBC). It provides a 7.0 inch primary display for the SBC for direct user interaction and information display, along with the ability for additional CAPES to be attached at the same time.$ 49.00立即购买
-
4.3inch 800*480 TFT LCD module
This is a reliable, stable display module. The LCD43 CAPE which features a 4.3 inch TFT LCD 800x480 resolution display with capacitive/Resistance touch, is a cape specifically designed for Single Board Computer(SBC). It provides a 4.3 inch primary display for the SBC for direct user interaction and information display, along with the ability for additional CAPES to be attached at the same time.$ 35.00立即购买
-
System Card booting from TF socket
In particular, for the use of various types of embedded boards provided by us, according to different boards, the embedded systems such as Linux3. X / 4. X, wince7.0, debian7.8, Android, Ubuntu, QT and the corresponding cross compiler tool set are burned, as well as the schematic diagram, circuit diagram, layout package and other files of the corresponding types of boards. Convenient debugging and$ 9.90立即购买
-
7.0inch 1024*600 TFT LCD module
This is a reliable, stable display module. The LCD70 CAPE which features a 7.0 inch TFT LCD 1024x600 resolution display with capacitive/Resistance touch, is a cape specifically designed for Single Board Computer(SBC). It provides a 7.0 inch primary display for the SBC for direct user interaction and information display, along with the ability for additional CAPES to be attached at the same time.$ 45.00立即购买
-
7.0inch 800*480 TFT LCD module
This is a reliable, stable display module. The LCD70 CAPE which features a 7.0 inch TFT LCD 800x480 resolution display with capacitive/Resistance touch, is a cape specifically designed for Single Board Computer(SBC). It provides a 7.0 inch primary display for the SBC for direct user interaction and information display, along with the ability for additional CAPES to be attached at the same time.$ 39.00立即购买
-
RK3588 Computing Board SBC3588
