► Product application
The IEC61850 protocol converter is a new generation of automation equipment developed for power automation and communication operation requirements, combined with the functional architecture of future digital power grid technology. It can meet the access requirements and communication management of various interfaces of current and future intelligent devices such as Gigabit Ethernet, RS485, CAN, and provide a unified communication platform for the backend (master station/dispatch).
Specially designed for digital substations, supporting IEC61850 and IEEE1588, all devices without built-in IEC61850 protocol, such as microcomputer protection, measurement and control devices, multifunctional instruments, etc., can be connected to their respective protocols and converted into IEC61850 protocol for the comprehensive automation system of the substation.
► Product features
1. Compatible with Rockchip RK3568 Series application processor, suitable for different application scenarios;
2. Hardware performance can be selected according to application requirements to optimize cost and improve market competitiveness;
3. Plug and play, reduce R & D costs and risks, accelerate product launch time;
4. The whole machine adopts industrial grade design requirements and can operate stably under high and low temperature (-40 ℃+85 ℃) conditions;
5. 10 to 15 years of product life cycle, long-term stable supply, greatly reduce project maintenance costs;
6. Original compliance supply channels, in line with RoHS and other international quality management system requirements;
7. Low power consumption, fanless cooling structure design;
8. 1U standard full width chassis with mounting ears on both sides, supporting front and rear installation;

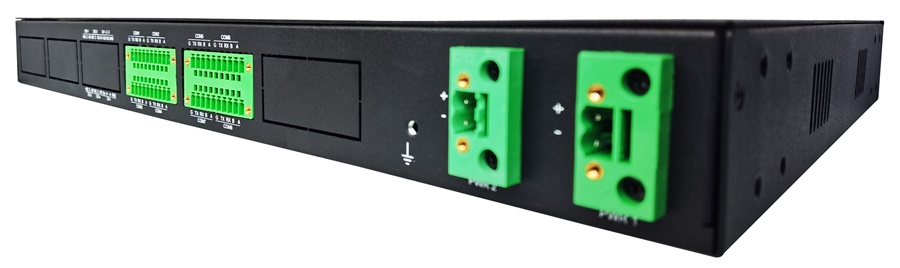

Specifications Product Name ARM Computing Server
Product Model ACS3568-DS2-10E8COM
CPU RK3568 (4×Cortex-A55) 64-bit processor, frequency up to 2.0GHz
RAM 2GB DDR4, up to 16GB
Storage 8GB eMMC, up to 128GB
Network RJ45 Gigabit Ethernet port×10, up to 16
Display HDMI 2.0, 4K@60Hz
USB 1 × USB3.0 HOST, 1×Type-C (for processor core board debugging)
COM 8 x RS232 or RS485, up to 12
Power DC36V to 72V power supply (Dual backup, Default DC48V input)
OS Linux/Android/Ubuntu/Debian (Default Linux)
Dimension Standard 1U rack-mounted server: 490mm x 300mm x 44.4mm
Operating Temperature -40ºC - 85ºC
Operating Humidity 8%RH~95%RH
-
